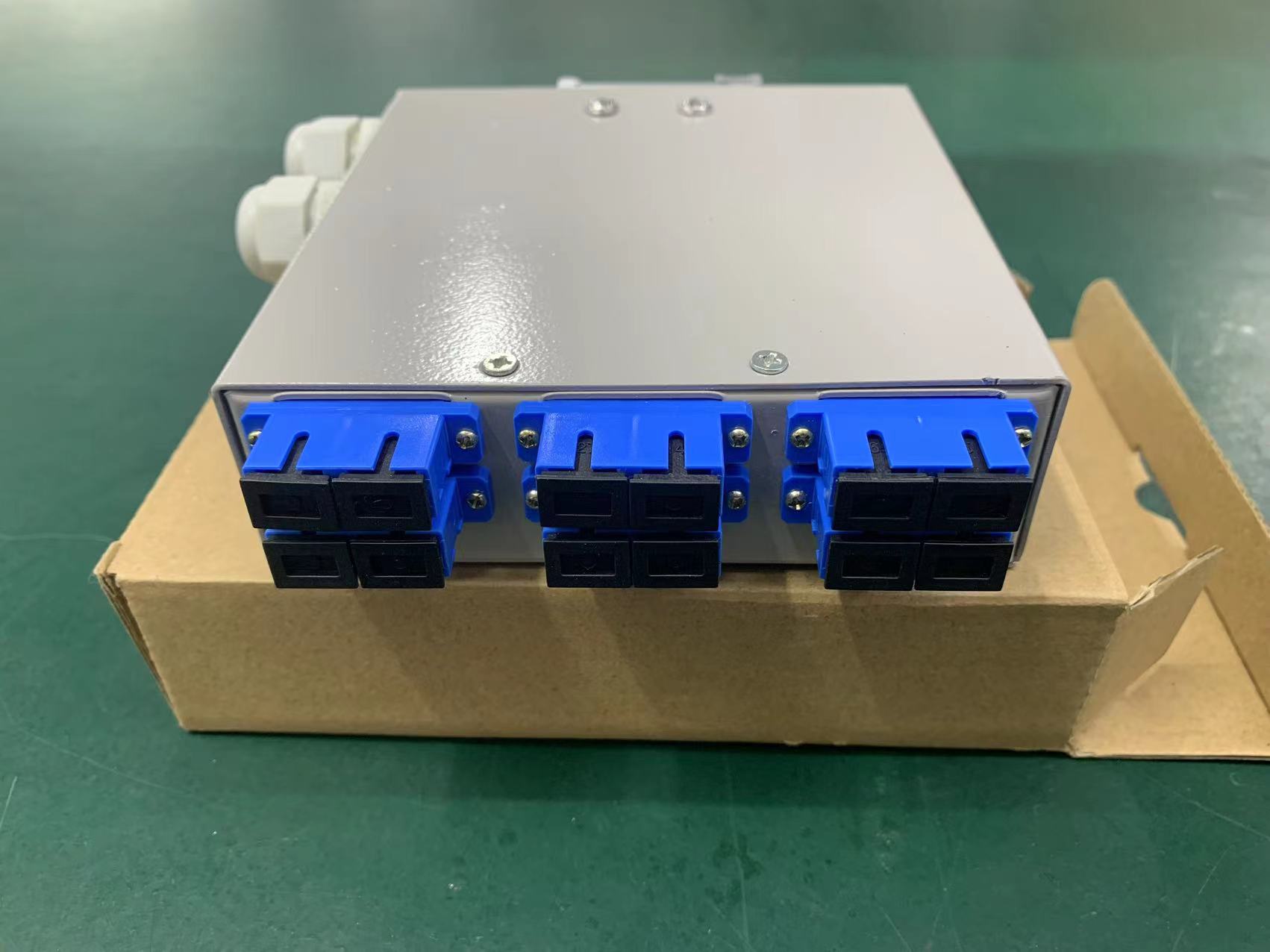

  • 6 Ports Metal DIN-Rail Fiber Splice Box Patch Panel

  • 6 Ports Metal DIN-Rail Fiber Splice Box Patch Panel

    Model:WXA-FSB-6 Series

    ►    Cold-roll steel, electrostatic painting

    ►    Suitable for different adapters: FC, SC, ST, LC …

    ►    2pcs cable entry/exit ports; 12pcs pigtail entry/exit ports


    • ￥0.00
      ￥0.00
Product Description

Model:WXA-FSB-6 Series

►    Cold-roll steel, electrostatic painting

►    Suitable for different adapters: FC, SC, ST, LC …

►    2pcs cable entry/exit ports; 12pcs pigtail entry/exit ports


Overview

WXA-FSB-6 Series 6-Port DIN-Rail Fiber Splice Box is suitable for 6 x SC Duplex Adapter, ST Duplex Adapter or LC Quad Adapter, and it is available for the distribution and terminal connection for various kinds of optical fiber system, especially suitable for mini-network terminal distribution, in which the optical cables, patch cores or pigtails are connected.


Feature

►    Cold-roll steel, electrostatic painting

►    Suitable for different adapters: FC, SC, ST, LC …

►    2pcs cable entry/exit ports; 12pcs pigtail entry/exit ports

►    Splicing module of 12 fibers inside

►    Max. 12pcs adapters can be loaded


Application

Suitable for Pigtail, ribbon and bunch cable connect distribution

Used for wall-mounted applications

Used in FTTH, Telecommunications, CATV. etc


Order Information


ItemDescription
WXA-FSB-66-Port DIN-Rail Fiber Splice Box, with 2 x PG11 cable glands and Wall mount kit.
(without any fiber adapters or pigtails)
WXA-FSB-D-6-SC6-Port DIN-Rail Fiber Splice Box, with 2 x PG11 cable glands and Wall mount kit.
(installed with6pcs SC Duplex fiber adapters)
WXA-FSB-Q-6-LC6-Port DIN-Rail Fiber Splice Box, with 2 x PG11 cable glands and Wall mount kit.
(installed with 6pcs LC Quad fiber adapters)
WXA-FSB-D-6-FC6-Port DIN-Rail Fiber Splice Box, with 2 x PG11 cable glands and Wall mount kit.
(installed with 6pcs FC Duplex fiber adapters)
WXA-FSB-D-6-ST6-Port DIN-Rail Fiber Splice Box, with 2 x PG11 cable glands and Wall mount kit.
(installed with 6pcs ST Duplex fiber adapters)
WXA-FSB-D-6-SC-P6-Port DIN-Rail Fiber Splice Box, with 2 x PG11 cable glands and Wall mount kit.
(installed with 6pcs SC Duplex fiber adapters and pigtails)
WXA-FSB-Q-6-LC-P6-Port DIN-Rail Fiber Splice Box, with 2 x PG11 cable glands and Wall mount kit.
(installed with 6pcs LC Quad fiber adapters and pigtails)
WXA-FSB-D-6-FC-P6-Port DIN-Rail Fiber Splice Box, with 2 x PG11 cable glands and Wall mount kit.
(installed with 6pcs FC Duplex fiber adapters and pigtails)
WXA-FSB-D-6-ST-P6-Port DIN-Rail Fiber Splice Box, with 2 x PG11 cable glands and Wall mount kit.
(installed with 6pcs ST Duplex fiber adapters and pigtails)
